Managing heat in high-power PCBs is a critical challenge. Without effective thermal solutions, components may overheat, leading to failures and costly repairs.
Efficient heat sinks can be produced through CNC machining, offering precise and reliable thermal management. This process ensures high thermal conductivity and optimal design for heat dissipation.
Choosing the right CNC machining techniques and materials is essential to meet thermal management objectives effectively.
Why Use CNC Machining for Heat Sinks?
High temperatures can cripple any high-power PCB, causing system breakdowns or reduced performance.
CNC machining offers precise control over the geometry of heat sinks, allowing for custom designs that enhance heat dissipation and fit specific PCB configurations.
The precision of CNC machining improves heat sink performance by tailoring it closely to the thermal needs of the PCB. The process involves designing customized fins and structures to maximize surface area contact with cooling air. Material selection also plays a vital role; aluminum and copper are popular choices for their excellent thermal conductivity. By leveraging CNC machining, we can optimize for both design and functionality, ensuring the heat sink not only fits perfectly but also cools effectively.
What Materials Are Best for CNC Machined Heat Sinks?
Not selecting the right material can lead to inadequate heat dissipation and component failures.

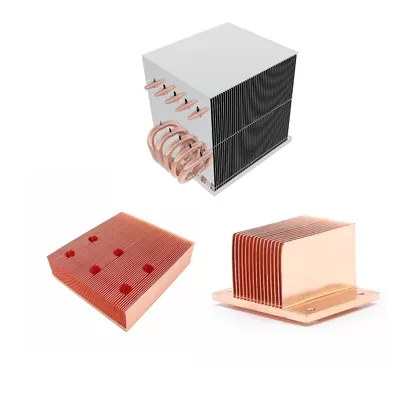

Aluminum and copper are the best materials, known for their high thermal conductivity and machinability, making them ideal for CNC machined heat sinks.
When choosing materials for CNC machined heat sinks, efficiency in thermal management is key. Here’s a simple breakdown:
| Material | Thermal Conductivity | Machinability | Cost |
|---|---|---|---|
| Aluminum | Moderate | High | Lower |
| Copper | High | Moderate | Higher |
Copper offers superior thermal conductivity but at a higher cost and slightly more challenging machinability. Aluminum, while slightly less conductive, is more cost-effective and easier to machine. The choice between these depends on the specific cooling requirements of the PCB and project budget constraints.
How Design Impacts Heat Sink Efficiency?
Ignoring design aspects of heat sinks can lead to inefficient thermal management.
Design impacts efficiency as it determines how well heat is transferred away from the components. Custom designs using CNC machining can enhance this efficiency.
Effective design is crucial for optimal heat dissipation in CNC machined heat sinks. Factors like fin thickness, spacing, and orientation must be tailored to match the airflow and thermal load characteristics. When customized correctly, the design can significantly enhance performance by increasing the surface area for heat transfer. This precision is achievable through CNC machining, which allows for complex geometries not feasible with other methods. Understanding these design principles ensures that the heat sink will manage thermal loads efficiently.
Conclusion
CNC machining allows for precise heat sink production, crucial for managing high-power PCB temperatures, optimizing performance, and ensuring longevity.
